Understanding the Core Technology of Industrial Laser Positioning

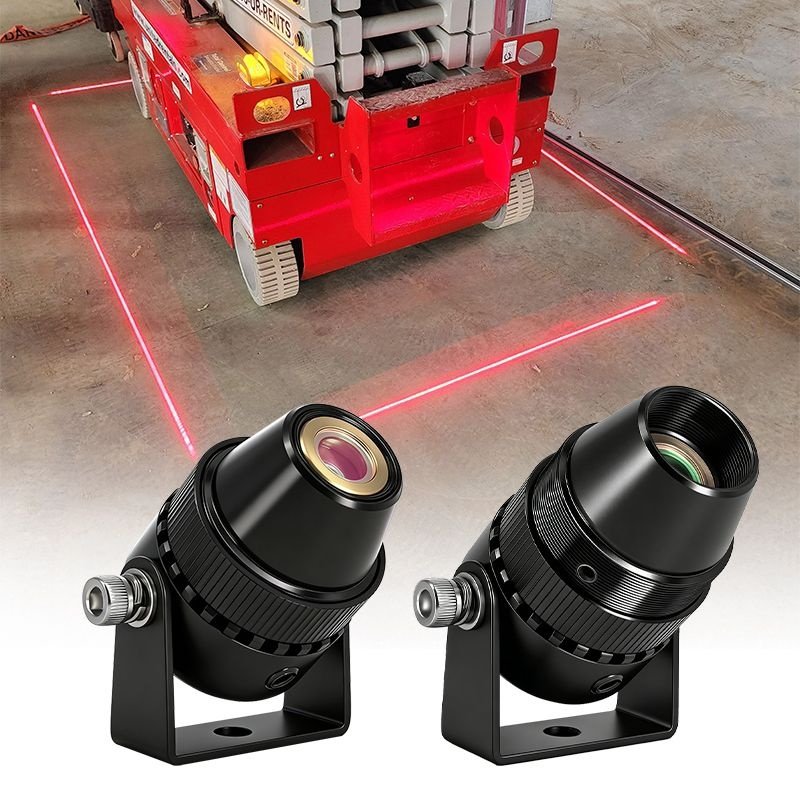

The primary function of a laser positioning light is to create a visible boundary that warns pedestrians and other vehicles of a forklift's presence. Unlike traditional LED warning lights that rely on flashing patterns, the XRL1350 utilizes a high-brightness laser source to project a sharp, continuous line. This "Line beam" technology ensures that the warning zone is clearly defined, regardless of ambient lighting conditions. The psychological impact of a solid red, green, or blue line is significantly higher than a flashing bulb, prompting immediate caution from workers.
XRLL leverages over two decades of experience in LED automotive lighting to refine this technology. The XRL1350 features an adjustable wire length and projection ratio. Specifically, when installed at a height of 1 meter, the line length adjusts between 1-3.5 meters with a ratio of 1:0.33. This adjustability allows safety managers to customize the danger zone based on the specific speed and size of the vehicle. Whether for narrow aisle pallet jacks or large counterbalance forklifts, the optical system can be tuned for maximum effectiveness without blinding operators.
Key Specifications and Durability Features of the XRL1350
Durability is critical in industrial environments where vibration, dust, and moisture are constant threats. The XRL1350 is engineered with an aluminum housing and an iron bracket, providing superior heat dissipation and structural integrity. With an IP67 waterproof rating, the unit is fully protected against dust ingress and temporary immersion in water, making it suitable for outdoor construction sites or cold storage facilities where condensation is common. The working temperature range of -30°C to 55°C ensures consistent performance in extreme climates.
Electrical flexibility is another standout feature. The device supports a wide voltage input of DC 10-80V, covering all standard industrial battery systems including 12V, 24V, 48V, and even 80V electric forklifts. This universal compatibility eliminates the need for complex voltage converters, simplifying installation and reducing potential failure points. The laser source options include Red (700mw), Green (300mw), and Blue (1600mw), allowing users to select the color that offers the best contrast against their specific floor surface and background environment.
