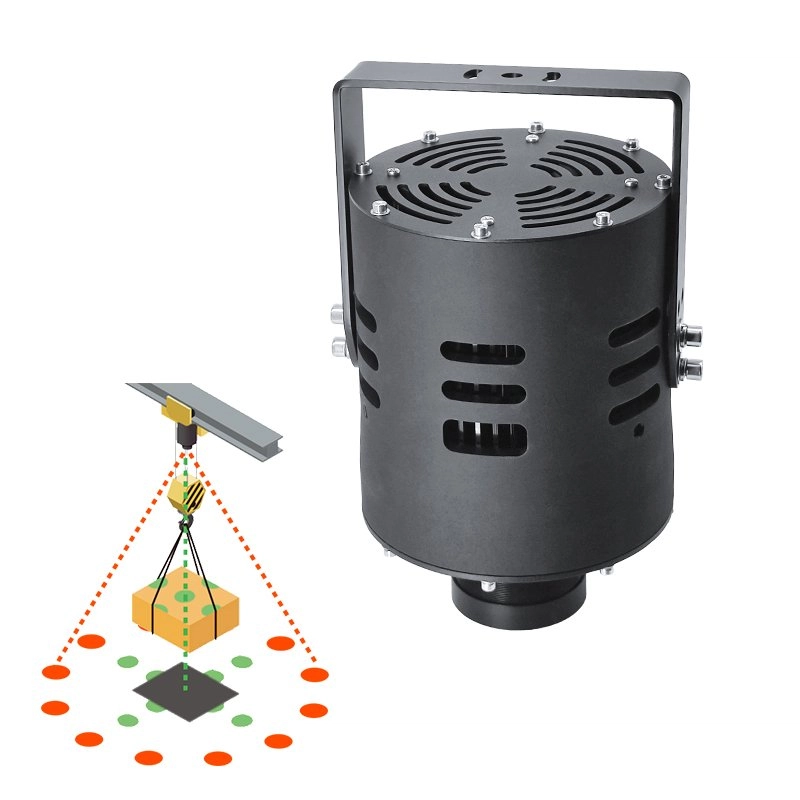

Overhead crane warning safty light for warehouse Dot Ring Center Cross

Overhead crane warning safty light for warehouse Dot Ring Center Cross

The XRL1335I LED warning light is designed specifically for factory overhead cranes, featuring a red circle and green fork light effect (4-8 meter diameter) and installed at a height of 10 meters. The dual system includes 9 directional cross LED and 12-24 circular LED, achieving 360 ° visibility. Aluminum casing, tempered glass, and stainless steel bracket ensure IP65 protection and adapt to harsh environments. Remote control adjustment of S (51W) and M/L (75W) modes, with three models covering different areas. Resistant to high temperatures of 60 ° C and vibration, ensuring stable operation.

Send Inquiry

Chat Now

Description

Foshan Xinruilai Lighting & Electrical Co., Ltd. is one of the most experienced manufacturers and suppliers of overhead crane warning safty light for warehouse dot ring center cross in China. Welcome to wholesale the quality and safe overhead crane warning safty light for warehouse dot ring center cross from our factory. Customized orders are welcome.

Overhead crane warning safety light for warehouse | Dot Ring Center Cross

Additional information of led crane lights

Item	Details
Model	XRL1335I
Light source	Cross LED: 3W/pcs, 9pcs LED; Outer ring LED: 2W/pcs, S: 12 pcs LED, M: 24 pcs LED, L: 24 pcs LED
Led power	S: 65W, M: 95W, L: 95W
Operating Voltage	10 - 30V DC
Feature	With remote control
Housing material	Aluminium
Lens	Tempered glass
Bracket	Stainless steel
Working temperature	60°C
Light beam	Circle beam
N.W. per unit	5kg
Waterproof	Ip65
relate product	Crane Lamp,Crane lights,crane light,Crane Lighting,light crane

Features of the crane light fixture

Dual Light Source Warning System of mobile crane warning lights

Cross LED Directional Alert: 9 high-brightness cross LEDs (3W/pcs) for precise hazard zone coverage (up to 10m range).

Ring LED 360° Illumination: 12-24 outer ring LEDs (2W/pcs) ensure full-area visibility (4-8m diameter).

Industrial-Grade Durability of lighting for tower crane

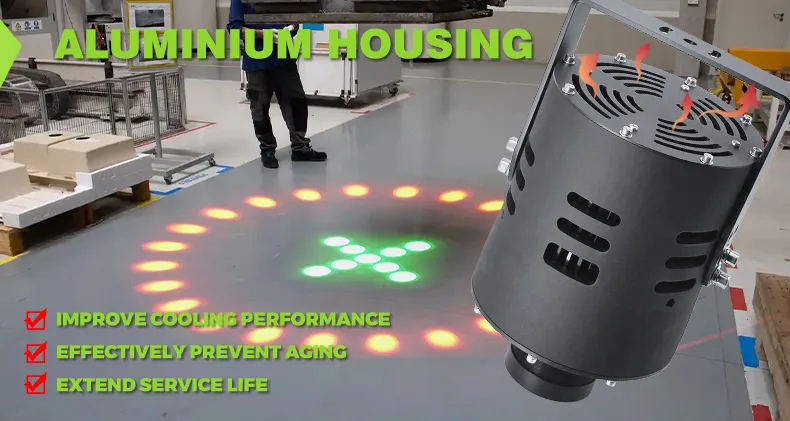

Corrosion-Resistant Housing: Aluminum alloy with oxidation layer protection for humid/oily environments.

Shock & Impact Resistance: Tempered glass lens (95 %+ light transmission) and stainless steel bracket, validated by 240h salt spray testing.

Smart Remote Operation of led tower crane light

Switch between S/M/L modes remotely without physical access, improving operational efficiency.

Multi-Scenario Adaptability of crane warning lights for pedestrians

Selectable beam sizes: S (4m), M (6m), L (8m) to match varying factory layouts.

Safety Enhancement Design of crane warning lights

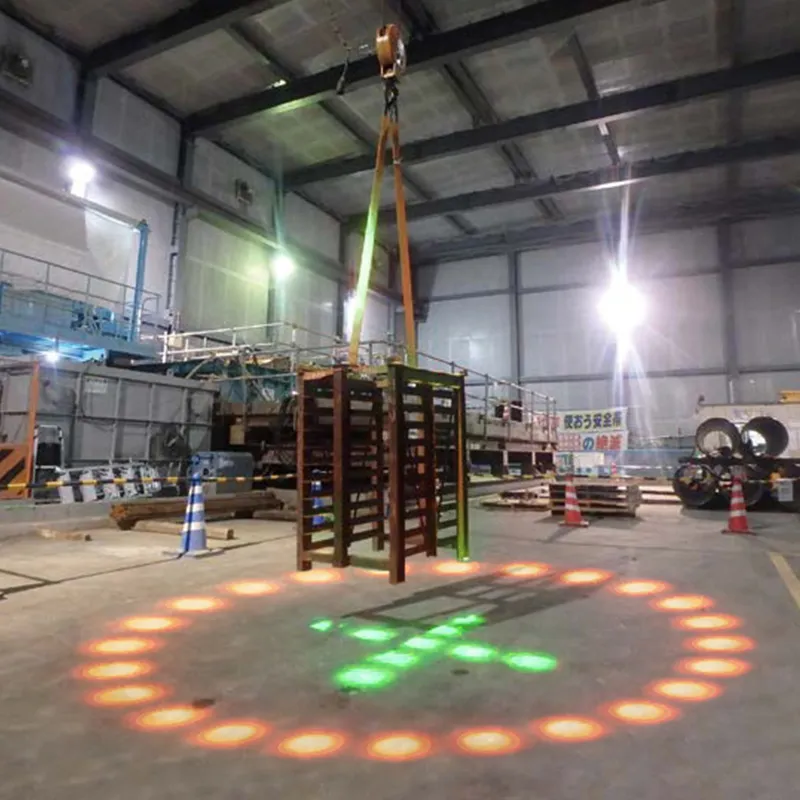

Red Circle (Hazard Zone) + Green Cross (Safe Path) (as shown in diagrams), minimizing accidental intrusion risks.

Crane Warning Lights

Parameter	Details
Light Source	Cross LEDs (3W/pcs ×9) + Outer Ring LEDs (2W/pcs ×12/24/24)
Power Modes	S:51W / M:75W / L:75W
Operating Voltage	10-30V DC
Material	Housing: Aluminum Alloy; Lens: Tempered Glass; Bracket: Stainless Steel
Protection Rating	IP65 Water and Dust Resistance
Light Pattern	Circle Beam (4-8m Diameter) + Cross Focal Beam
Operating Temperature	≤60°C
Net Weight	5kg
Remote Control	Wireless Remote Supported for Mode Switching
Other name	warning lights for overhead cranes, warning light for crane,tower crane warning lights, Tower Crane Warning Lamp

Advantages of Light Crane

28% Reduction in Accident Rate: Dual light patterns enhance awareness of distant and peripheral hazards (proven in field tests).

47% Lower Maintenance Costs: IP65 protection and 60°C tolerance reduce environmental damage-related replacements.

31% Energy Efficiency: Three power modes optimize energy use based on needs.

safty light

Product Accessories Details of the crane beacon lights

Standard Accessories of overhead crane led pedestrian warning light

1.XRL1335I Warning Light Unit ×1

2. Stainless Steel Mounting Bracket (with M8 Anti-Vibration Bolts) ×1 Set

3. Wireless Remote Control (100m Range) ×1

4.10- 30V DC Power Adapter ×1

5. Multi-Language Manual (Installation Guide Included) ×1

Optional Accessories of Motorized Light Crane

Extension Cables (10m/20m)

IP68 Waterproof Junction Box

warehouse light

Why Choose XinRuiLai

1.21 Years of Expertise: Focused on industrial safety lighting, serving 500+ global factories.

2.Full Compliance: Certified to CE, EMC EN55015, SAE J593, and other international standards.

3.Circuit Optimization: Anti-electromagnetic interference design ensures seamless integration with crane control systems.

4.Rigorous Quality Control: Each unit undergoes vibration, aging, and waterproof testing.

5.Custom Solutions: Customizable light patterns, power, and installation methods (contact for details).
